Product Description
NORATEL IMEDi 300 Medical Isolating Transformer
International Series
New In Box
with Power Cord Set

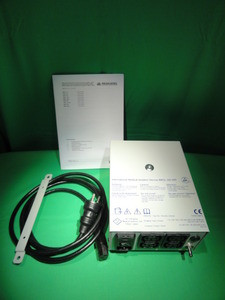

As Shown In Pictures
Manufacturer Specs:
http://www.noratel.com/content/view/full/3166
This series of medical isolating transformers is offered
in two different versions. The IMEDe series was designed
especially for the use within Europe. Therefore, it
is working with a fi x input and output voltage of 230 V~. The IMEDi
series can be used in areas with 115 V~ and 230 V~ system voltage.
Its voltage levels, which can be switched separately on the primary
and secondary side, allow additional voltage adjustments.
For both series, a built-in inrush current limiter on semi-conductor
technique (NTC) avoids an unwanted blow of the input fuses of the
device or of an automatic circuit breaker of the buildingâ??s sub-distribution
through the inrush current.
All devices are, depending on the model, equipped with one or two
potential equalization bolts (POAG according to DIN42801) for the
connection to a special medical potential equalization existing in
the room of application.
The protective earth conductor of the input socket is additionally
conductively connected with the corresponding contacts of the output
sockets. By this measure, the devices are equipped with a base
potential equalization. Hereby, it is also possible to operate the devices
in such medical rooms, in which no additional special potential
equalization aside from the intact protective earth conductor of
the wall socket is installed.
The devices of the IMED series are designed for continuous operation.
Self resetting temperature switches avoid damage through
temperature rise in the device in a reliable way.
The devices of the IMEDi series additionally have the
NRTL approval which allows the use in the US American
and Canadian market.
The model IMEDi 300WR is designed for an extended input voltage
range of 100-130 V~/220-240 V~.NORATEL IMEDi 300 Medical Isolating Transformer
International Series
New In Box
with Power Cord Set
As Shown In Pictures
International Series
New In Box
with Power Cord Set
As Shown In Pictures
Manufacturer Specs:
http://www.noratel.com/content/view/full/3166
This series of medical isolating transformers is offered
in two different versions. The IMEDe series was designed
especially for the use within Europe. Therefore, it
is working with a fi x input and output voltage of 230 V~. The IMEDi
series can be used in areas with 115 V~ and 230 V~ system voltage.
Its voltage levels, which can be switched separately on the primary
and secondary side, allow additional voltage adjustments.
For both series, a built-in inrush current limiter on semi-conductor
technique (NTC) avoids an unwanted blow of the input fuses of the
device or of an automatic circuit breaker of the buildingâ??s sub-distribution
through the inrush current.
All devices are, depending on the model, equipped with one or two
potential equalization bolts (POAG according to DIN42801) for the
connection to a special medical potential equalization existing in
the room of application.
The protective earth conductor of the input socket is additionally
conductively connected with the corresponding contacts of the output
sockets. By this measure, the devices are equipped with a base
potential equalization. Hereby, it is also possible to operate the devices
in such medical rooms, in which no additional special potential
equalization aside from the intact protective earth conductor of
the wall socket is installed.
The devices of the IMED series are designed for continuous operation.
Self resetting temperature switches avoid damage through
temperature rise in the device in a reliable way.
The devices of the IMEDi series additionally have the
NRTL approval which allows the use in the US American
and Canadian market.
The model IMEDi 300WR is designed for an extended input voltage
range of 100-130 V~/220-240 V~.NORATEL IMEDi 300 Medical Isolating Transformer
