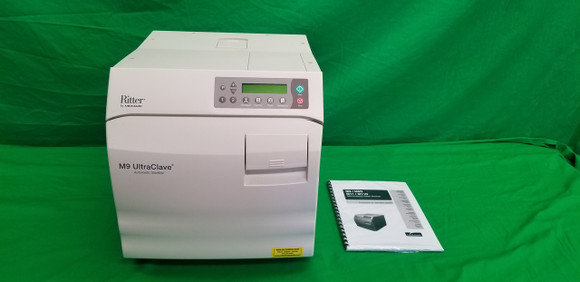

The Ritter M9 packs all of the reliable sterilizing power you need into a compact unit perfect for areas with limited space.

With our strong heritage of quality, value and reliability, you can’t go wrong with the Ritter M9.

The M9 is simple to use and effective. Select your cycle and the time is set for you.

Press “Start” and the M9 fills with the correct amount of water.

Once the sterilization process is complete, the door opens automatically.

Reliable

Steam–Flush Pressure Pulse Air Removal System ensures proper steam penetration

Simple

Simply load it, set it and forget it

Convenient

Four pre-programmed and two programmable cycles

• Technical Specifications

  Overall Length w/ Plug

  20.4" (51.8 cm)

  Overall Width

  15.3" (38.9 cm)

  Overall Height w/ Printer

  15.8" (40.1 cm)

  Minimum Countertop Area

  17.9" D x 15.3"  W (45.4 cm x 38.9)

  Chamber Dimensions

  9" diameter (22.9 cm); 15" depth (38.1 cm) 3.5 gal usable volume (13.4 liters)

  Trays THIS REFURBISHED AUTOCLAVE COMES WITH 2 TRAYS

  One large –7.3" W x 12" L x 0.8" D (18.6 cm x 30.5 cm x 2.2 cm)
  One small – 5.6" W x 12" L x .8" D (14.3 cm x 30.5 cm x 2.2 cm)

  Unit Weight

  73 lb (33.1 kg)

  Shipping Weight

  81 lb (36.7 kg)

  Water Reservoir Capacity

  1.1 gal (4.1 liters)

  Electrical Requirements

  115 VAC, 50/60 Hz, 15 A Single Phase

  Standards

  Meets the requirements of ASMC Boiler and Pressure Vessel Code
  UL Listed to US and Canadian Standards



  OUR FULL SERVICE BIO MED SHOP REFURBISH PROCESS COVERS THE FOLLOWING

  REMOVAL OF MAIN HEATER AND CONDENSING COIL

  SAND BLAST MAIN HEATER AND CONDENSING COIL

  REMOVAL AND FULL CLEANING OF WATER RESERVOIR

  BUFF AUTOCLAVE CHAMBER

  REMOVAL AND CLEANING OF VALVE MANIFOLD

  CLEAN TEMP PROBE

  CLEAN AND SONICATE ALL PLUMBING LINES

  CLEAN RACK AND TRAYS

  CLEAN DOOR MECHANISM

  FULL DOOR ADJUSTMENT

  INSTALL NEW FILL VALVE

  INSTALL NEW VENT VALVE

  INSTALL NEW AIR VALVE

  INSTALL NEW HEATER GASKETS

  INSTALL NEW OVER TEMP SENSORS

  INSTALL NEW WATER LEVEL SENSOR

  INSTALL NEW DOOR GASKET

  INSTALL NEW DOOR DAM GASKET

  INSTALL NEW DOOR SPRINGS

  INSTALL NEW CHAMBER FILTER

  INSTALL NEW SIGHT TUBE / DRAIN TUBE

  TEST OF PRESSURE VALVE, BELLOWS AND DOOR SWITCH

  INSPECT MAIN PCB BOARD, AND ALL ELECTRICAL

  INTERNAL TEMP TEST

  ELECTRICAL LEAKAGE TEST

  GROUND RESISTANCE TEST

  SPORE TEST UNIT

  RUN  MULTIPLE TEST CYCLES  AND DOCUMENT INTERNAL TEMP

  PERFORMANCE DATA SHEET PROVIDED

  USER MANUAL PROVIDED



  90 DAY WARRANTY ON MANUFACTURE DEFECTS
